Description

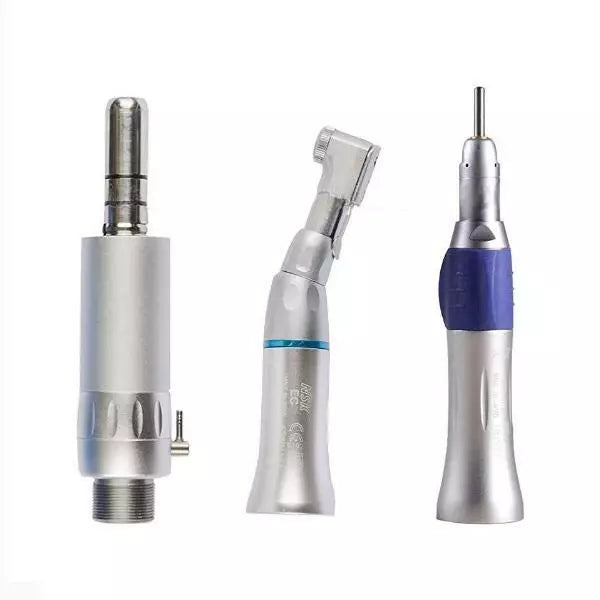

NSK Dental Slow Low Speed Handpiece Kit EX-203C Set E-type 4H
Description:
EX-203C-4H - NSK DENTAL SLOW LOW SPEED HANDPIECE KIT EX-203C SET E-TYPE (4-HOLE)
EX-203C-2H - NSK DENTAL SLOW LOW SPEED HANDPIECE KIT EX-203C SET E-TYPE (2-HOLE)
Features and Benefits:
- Self-illuminated, just a little air can generate sufficient power, superior brightness.
- Can be used without connecting circuit
- Opening cartridge
- Triple water sprays
- 135°C Autoclavable
- Contra angle handpiece
- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°
- For any lab or E-type motors
- Straight Nosecone
- Working pressure: 0.3MPa (2-hole);
- 0.25MPa (2-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/mi
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.
- Air Mortor EX-203C
- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- Borden 4 holes
- Max speed 20,000 min-1
- 1x E-type air motor EX-203C 4-Hole
- 1x Straight nose cone
- 1x Contra Angle handpiece
- 1x English manual
